Description

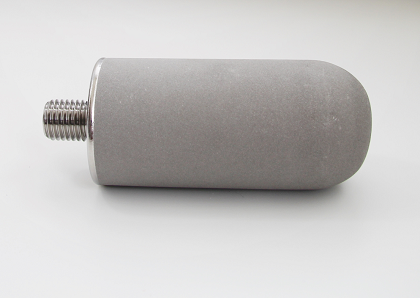

CMI Tube spargers are composed by three parts: sintered porous metal tube, solid metal plate and thread connection which are welded to the tube.
Sintered porous tube is the main part which is sintered by pure titanium powder or SS316L powder. The micron rating and distribution of the pores can be controlled by the metal powder material.
Various specifications and connections are available. Tube spargers should be horizontal placed to increase the aeration area.

Features

－Precise pore size distributions
－Small bubble created
－Easily cleaned/back-flushed
－Corrosion/abrasion resistant
－High temperature resistance
－High pressure resistance
－No media migration and second pollution

Data & Specifications:

No.    Code      Tube OD(mm)    Length(mm)    Connection      Aeration Area(m2)    O2 utilization ratio
1         JT-ZY       Ф4-60                   8-64                M6-M20                   -                        30-40%
2         JT-DCT    Ф60-120               60-750             G1/2”-G1”        0.5-3                     30-40%
3         JT-DCS    Ф60-150               250-1000         G1/2”-G1”        0.5-4                     30-40%

Product Material:

－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Note: Special material, sizes and shape can be customized. Pls. contact CMI at [email protected] if you have more exacting requirements.

Applications:

－Conventional Sintered Metal Spargers

• Pure water and mineral water ozone sterilization aeration
• Industrial waste water aeration
•  Aeration of domestic sewage treatment aeration tank
• Aeration in high temptation environment

－Special Sintered Metal Spargers

• Oil produced water degreasing aeration
• Industrial waste water degreasing aeration
• Aeration of high viscosity fluid
• Aeration in high temptation environment
• Aeration in easy scaling application
