Description

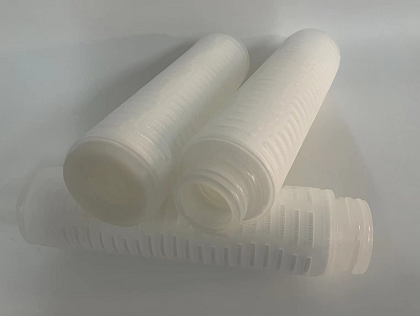

CMI Nylon pleated filter cartridge is constructed of nylon 6.6 membrane, which do not contain any surfactants or wetting agents. This reduces the cleaning time and the cost of the membrane cartridge.
It delivers high efficiency and consistent filtration for wide range of critical applications. Removal of particles from 0.22 to 1 micron, available in both nominal and absolute ratings.


Features
－Pleated hydrophilic nylon membrane material
－No surfactants or wetting agents
－Low pressure drop and long service life
－Full range of removal ratings
－Pleated construction provides high flow rates, low initial
  Differential pressure and good dirt hold capacity
－Material acc. to FDA compliance title 21
－Cartridge can be autoclaved for at least 5 times half-hour cycles @ 121℃(250℉)
－Various adaptors choices
－100% integrity test

Specifications
－Material:
   Media: Pleated hydrophilic Nylon 6.6 membrane
   Inner core, cage, caps, support layer: polypropylene, Stainless Steel
   O-ring: Buna N, EPDM, Viton, Silicone, FEP/Silicone,  FEP/Viton
－Micron ratings: 0.22,0.45,1μm
－Length: 10inch (254mm), 20inch(508mm), 30inch(762mm), 40inch(1016mm)
－Outside Diameter: 2.36inch(60mm), 2.48inch (63mm), 2.56inch(65mm),2.68inch(68mm)
－Max. differential pressure:
   1.37 bar@93℃(19.9psid@200℉)
   2.75 bar@60℃(39.8psid@140℉)
   4.81 bar@21℃(69.7psid@70℉)
－Recommended change pressure drop: 2.1 bar@21℃(30.5psid@70℉)
－Max. Operating Temperature:93℃

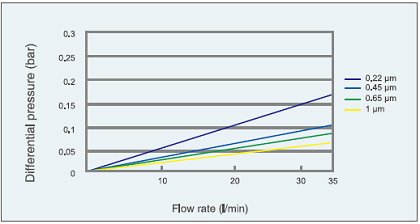

Flow Rate of 10inch, for fluids with a dynamic viscosity of 1m Pa.s @20℃(68℉)

Ordering Table:
