Description

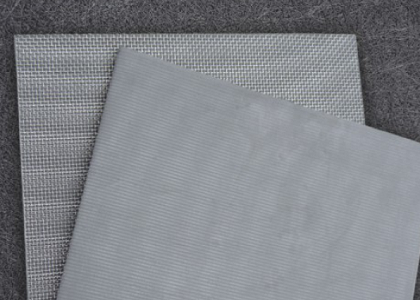

The six-layer metal sintered mesh is to add a layer of 8-mesh or 12-mesh square hole mesh after the standard five-layer mesh to form a six-layer sintered structure. It is a new type of filter material with high strength and overall rigidity, which is made of six layers of stainless-steel wire mesh through special laminated pressing and vacuum sintering. The meshes of each layer are interlaced to form a uniform structure. The ideal filter structure has the characteristics of high filtration precision, small filter resistance, good mechanical strength, wear resistance, heat resistance, cold resistance and excellent processability. It is great solution for filtration that requires high compressive strength and uniform filtration accuracy. These materials are widely used in food and pharmaceutical industries, especially in pharmaceutical two-in-one and three-in-one equipment.

Features

1. Compared with the standard five-layer net, it has better strength and shunt performance.
2. High strength: high mechanical strength and compressive strength
3. High precision: uniform surface filtration performance can be exerted for the filtration precision of 1-300μm
4. Heat resistance: it can be used for continuous filtration from -200°C to 650°C
5. Cleanability: Easy to clean because of its excellent countercurrent cleaning effect of surface filtration.

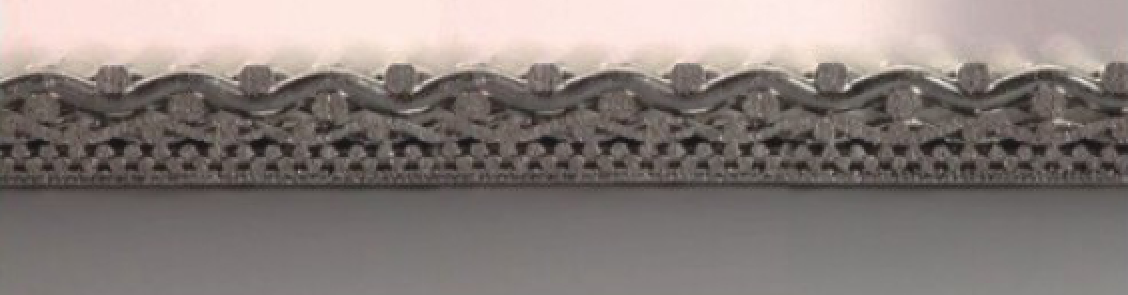

Structure:

SPEC. and Material:

1, Material: SS304, SS316L, Special material like Hastelloy, Monel, 904L can also be made acc. To request.


2, Main spec.:
1000mm*500mm
1000mm*600mm
1000mm*1000mm
1200mm*1000mm
1200mm*1200mm

3, Filtration Rating: 1-300μm
