Description

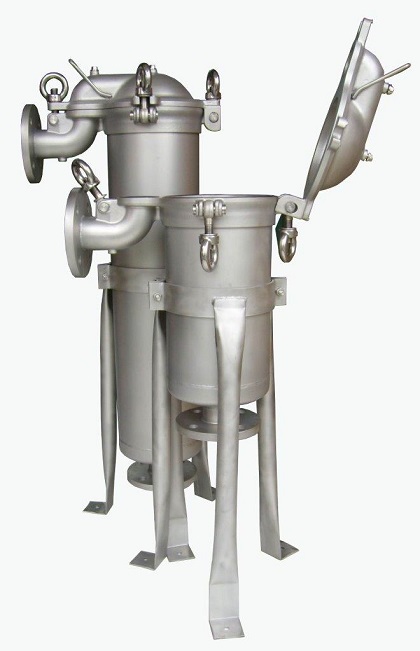

CMI Top Inlet Bag Filter Vessels series is designed for a general-purpose use for your filtration needs.
The casted top inlet lid provides perfect sealing to ensure no by pass, which gives customer the top performance in many challenging liquids filtration process.

They can be applied in many industrial applications with liquid of low to medium viscosity.
The structure is stable and can be calculated and constructed acc. to ASME Section VIII, Division 1.

Features

－Casting lid with fewer welds and stable pressure resistance
－Top cover presses and seals filter bag directly
－Almost 100% no leakage
－SS304/316 construction
－Fix perfectly with all standard bags
－Can be assembled with all standard filter bags
－Easy cleaning of inner & outer surface

Data & Specifications:

－Size 1, Size 2
－Design Pressure: 10bar
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: Shot blasted for both inside & outside

TF Engineering Specifications

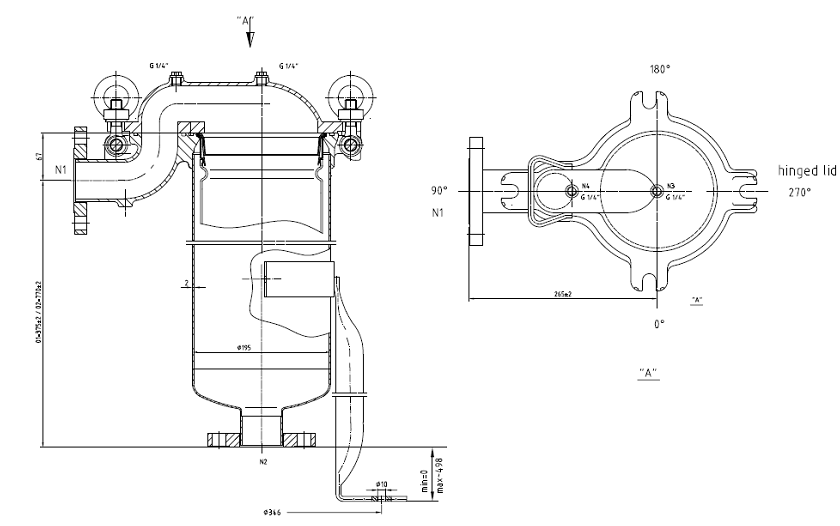

TF Structure & Sketch
