Description

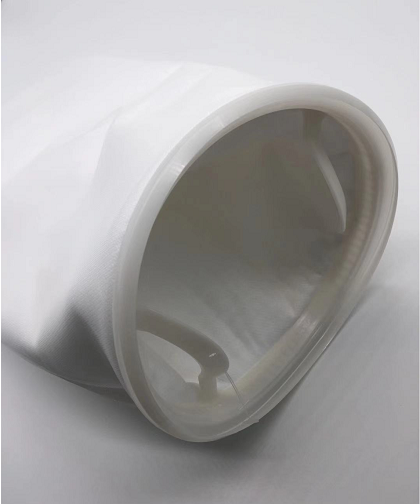

CMI AGF filter bags are manufactured from 100% pure melt-blown polypropylene which provides the benefits of a clean, chemically resistant and silicone-free material in an economical, self-contained and easy-dispose-of filter bag.
Unique single step welding provides a more consistent weld-seam with greater control over entire process. With a strong, flexible welding seam, the bag can be fitted in basket more effectively, which creates a greater resistance to shock loading.


Features


－Highly efficient filter media
－Maximize dirt holding capacity and prolong service life
－Double downstream protection layer
－No fiber release from basket abrasion
－No bypass with totally welded construction
－Unique construction provides stronger weld-seam

Specifications:

－Material: Polypropylene melt blown
－Max. DP (@25°C): 2.5bar (36psi)
－Max. Operating Temp.: 90°C (194℉)
－Max. flow rate.: Size 1: 8 m3/h
                Size 2: 15m3/h
－Types: 51,53,55,57,59
－Size selection:
  Size      Dimension         Area
01      7” dia × 16” L       0.24 m2
02      7” dia × 32” L       0.48 m2
03      4” dia × 8” L        0.08 m2
04      4” dia × 14” L       0.16 m2
