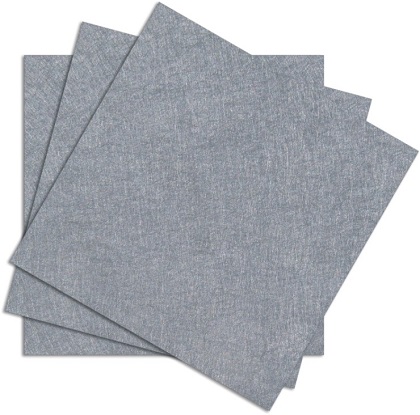

Sintered fiber felt without protective mesh

Description

Sintered fiber felt is made of extremely fine stainless-steel fibers (diameter accurate to micron) through non-woven laying, laminated and sintered at high temperature. The finished felt is composed of layers of different pore sizes to form a pore gradient, which can be controlled to obtain extremely high filtration accuracy and greater dirt holding capacity. It has the characteristics of three-dimensional network, porous structure, high porosity, large surface area, and uniform pore size distribution. It can be continuously maintain the filtering effect of the filter surface. Due to the above structure and characteristics, the stainless steel sintered felt can effectively make up for the weakness of the metal mesh that is easy to be blocked and damaged, and can make up for the fragility and small flow of the powder filter product. Sintered fiber felt is an ideal high temperature resistant, corrosion resistant, high precision filter material.

Features

1. Large dirt holding capacity, high filtration precision, slow pressure rise, long replacement cycle
2. High porosity and excellent permeability, small pressure loss and large flow
3. Corrosion resistance, high temperature resistance, acid resistance, alkali resistance, organic solvent resistance, chemical corrosion resistance, etc., and can be used for a long time in an environment of 480 ° C.
4. Easy to process, form and weld
5. Reinforced type, thickened type, protective mesh and other specifications can be specially produced according to user requirements.

SPEC. and Material:

Material: SS316L
Main spec.:
1000mm*500mm
1000mm*600mm
1000mm*1000mm
1200mm*1000mm
1480mm*1000mm
