Description

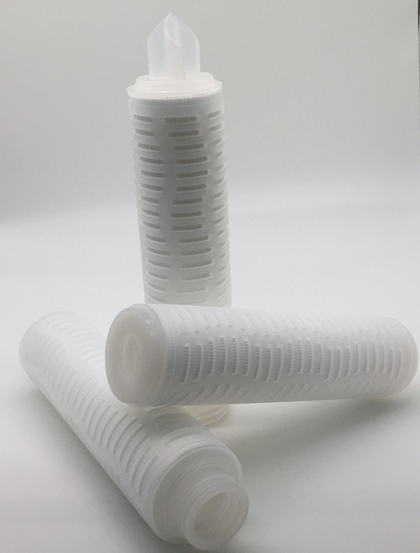

Polypropylene pleated filter cartridge is constructed of micro polypropylene media and nonwoven or silk net support. Adaptors are thermally welded to cartridge without using any glue, so there is no second pollution caused by it.
It delivers high efficiency and consistent filtration for wide range of critical applications. Removal of particles from 0.2 to 50 micron, available in both nominal and absolute ratings.


Features
－Excellent chemical compatibility
－Pleated structure increases filtration area
－Low pressure drop and long service life
－Full range of removal ratings
－Made of high purity polypropylene
－Pleated construction provides high flow rates, low initial
  Differential pressure and good dirt hold capacity
－Cartridge can be autoclaved for at least 5 times half-hour cycles @ 121℃(250℉)

Specifications
－Material:
   Media: Pleated polypropylene
   Inner core, cage, caps, support layer: polypropylene，Stainless Steel
   O-ring: Buna N, EPDM, Viton, Silicone, FEP/Silicone, FEP/Viton
－Micron ratings: 0.2,0.5,1,5,10,25,50,100 μm
－Length: 10inch (254mm), 20inch(508mm), 30inch(762mm), 40inch(1016mm)
－Outside Diameter: 2.36inch(60mm), 2.48inch (63mm), 2.56inch(65mm),2.68inch(68mm)
－Max. differential pressure:
1.37 bar@93℃(19.9psid@200℉)
2.75 bar@60℃(39.8psid@140℉)
4.81 bar@21℃(69.7psid@70℉)
－Recommended change pressure drop: 2.1 bar@21℃(30.5psid@70℉)

－Max. Operating Temperature:93℃

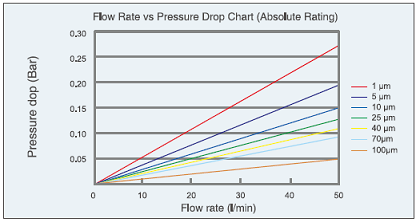

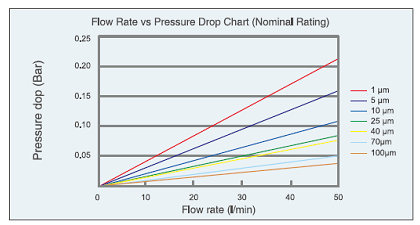

Flow Rate of 10inch, for fluids with a dynamic viscosity of 1m Pa.s @20℃(68℉)

Ordering Table:
