Description

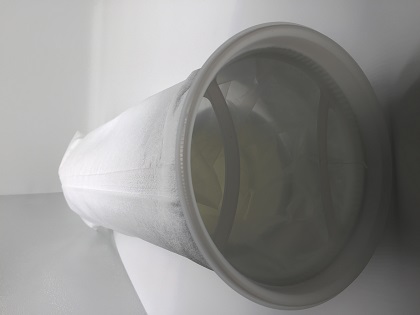

The Max Pong heavy duty extended life filter bag is the leader in high-efficiency, low-cost filtration. Its seamless micro-fiber graded density cartridge insert removes trace oils that frequently occur in process fluids, and provides up to four times dirt holding capacity of conventional PP bags. With its welded seam felt cover and patented ring for elimination of unfiltered bypass, it becomes the perfect choice for uses where longer-lasting, high-efficiency filter bags are needed. It is ideal for continuous flow applications such as e-coat and phosphate batch applications including oils, edible oils and syrups, or any final or polishing filtration applications.


Features

－High-efficiency, low cost filtration
－Suitable for continuous flow applications
－Large dirt-holding capacity
－Filters wide range of particle sizes
－Pure polypropylene microfiber insert
－Welded seam construction eliminates unfiltered bypass

Specifications:

－Material: Polypropylene filter bag with
100% polypropylene rigid insert
－Max. Operating Temp.: 93°C-104°C (200℉-220℉)
－Suggested DP.: dirty-35 PSIG maximum;
10-15PSIG optimum change out
－Micron Rating: 1,5.10,25,50,100
－Size selection:
  Size      Dimension
01      7” dia × 16” L
02      7” dia × 32” L
