Description

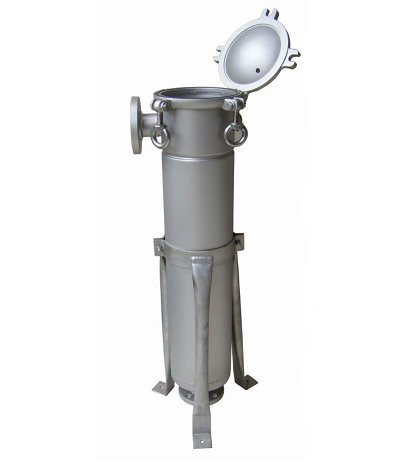

CMI Side Inlet Bag Filter Vessels series is designed for a general-purpose use for your filtration needs.
They can be applied in many industrial applications with liquid of low to medium viscosity.
The structure is stable and can be calculated and constructed acc. to ASME requirements. Test pressure is based on Europe standard with 1.43 times.

Features


－Unique and reliable seal
－Eye bolt locking structure
－SS304/316 construction
－Unique Viton profile gasket for perfect bag sealing
－Fix perfectly with all standard bags
－Can be assembled with all standard filter bags
－Easy cleaning of inner & outer surface

Data & Specifications:

－Size 1, Size 2, Size 3 and Size 4
－Design Pressure: 10bar for size 1& size 2;
 21bar for size 3 & size 4
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: Shot blasted for both inside & outside

SF Engineering Specifications

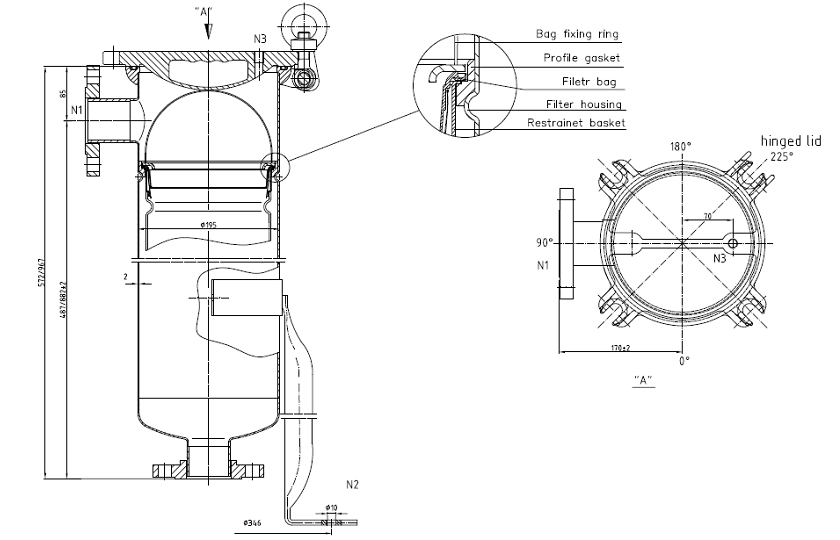

SF Structure & Sketch
