Description

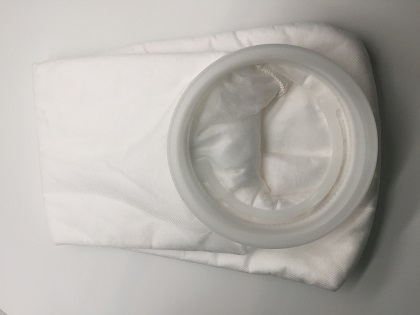

Our MFB series of absolute rated filter bag designed for your high filtration efficiency particle removal and heavy dirt load application.

High efficiency filter bag designed for your long service life, high dirt load application with demand for absolute particle removal efficiency of up to 99%.
It is also effective in removing gelatinous contamination due to its unique structure.
It is made of melt blown PP fiber in several layer effectively removal particle of up to 99% efficiency.
Pure PP media contain no silicone oil, ideally for application in automotive paint and coating industry.

Features

－High-efficiency, low cost filtration
－Suitable for continuous flow applications
－Large dirt-holding capacity
－Filters wide range of particle sizes
－Pure polypropylene melt blown
－Welded seam construction eliminates unfiltered bypass

Specifications:

－Material: Polypropylene Melt Blown
－Max. Operating Temp.: 93°C-104°C (200℉-220℉)
－Micron Rating: Absolute rated1-100 micron
－Size selection:
  Size      Dimension
01      7” dia × 16” L
02      7” dia × 32” L
