Description

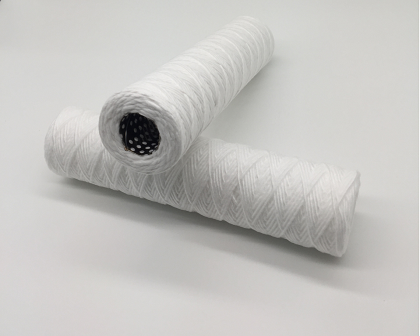

String Wound Cartridge is a kind of depth filtration with the micron rating decided by the wound pattern and wound density of filament yarn. Its pore is bigger outside and smaller inside. It is mostly used in low viscosity and low impurity liquid, and also suspended particular materials. With different types of filament media, the cartridges could meet different applications like: water treatment, food & beverage, organic solvent, plating solution in electronics industry, petrochemical industry, hydraulic liquid, lubricant and so on.


Features
－Honeycomb structure makes it higher efficiency
－Both spirals welding and straight welding are available
－Good chemical compatibility by different filtration media
－Full range of removal ratings
－Different sizes (length and diameter) are available
－Big flow rate and high dirt holding capacity

Specifications
－Material:
   Filter Media: Polypropylene
   Inner Core: Polypropylene /SS304/SS316L
   Gasket: NBR, EPDM, Viton, Silicon
－Micron ratings:  1, 3, 5, 10, 20, 25, 50,75,100,150μm
－Max. Operating Pressure:2.0 Bar@25 ℃
－Max. Operating Temperature:
   PP media with PP core ≤ 70 ℃
   PP media with SS core ≤ 90 ℃
－Length: 5″(127mm), 10″(254mm), 20″(508mm), 30″(762mm), 40″(1016mm), 50″(1270mm),       60″(1524mm), 70″(1778mm)
－OD: 60mm,62mm,68mm,114mm
－ID:28mm,30mm

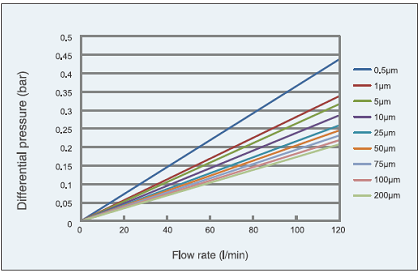

Flow Rate of 10inch, for fluids with a dynamic viscosity of 1m Pa.s @20℃(68℉)

Ordering Table:
