Description

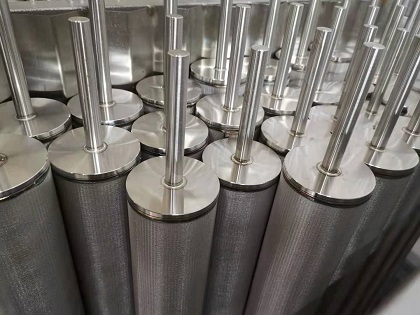

CMI sintered wire mesh filter is made from multiple layers of sintered wire mesh panels. Several layers of wire mesh are heated, pressed and bonded together by high temperature vacuum sintering, argon arc or plasma welding. The size and distribution of the holes are decided by selecting different wire diameter, mesh size, mesh layer, and weaving method of the wire mesh. This production process brings excellent mechanical properties and makes the sintered wire mesh filter as ideal material for filtration. Standard product is usually made by 5 layers, while 6 or 7 layers are also possible in case of customer request.

Besides sintered wire mesh filter cartridges, sintered mesh panels can also be formed into other filter elements like sintered wire mesh filter discs, sintered wire mesh cylinders, sintered wire mesh cones and tubes.

Features

－Stronger Structure
－All stainless steel construction
－Filter mesh is not easily deformed
－Applied in high pressure or high viscosity
  environment
－Corrosion and high temp. resistant
－Possible for cutting, bending, punching,  stretching and welding

Data & Specifications:

－Shape: Sheet, Plate, Discs, Tubes, length and sizes can be acc. to customer request
－Outside Diameter of cartridges(OD): 20mm-1000mm
－Media Grade: 2-200 μm

                   Cross section Structure of sintered mesh filter

Product Material:

－Stainless Steel (SS316L, SS304)

Applications:

－Purification and Filtration of Liquid & Gas
－Separation and recovery of solid particle
－Transpiration cooling under high temperature
－Noise Reduction
－Fluidized Beds
－Chemical fiber filtration
－Chemical Processing
