Description

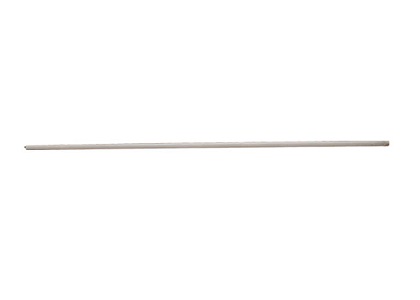

The small-diameter metal filter reduces the outer diameter on the basis of the external smooth type. The wall thickness is thinner; thus, the filter tube is easier to process into components. When the filtration flow can be increased, the size of filter system can be reduced. Meanwhile, it inherits the performance advantages of the external smooth type metal filter: due to the small binding force between solid particles and the smooth outer surface/inner surface, the disturbance effect of the fluid (solid or liquid) on the surface of the filter element will affect the formation of the filter cake. Inhibition or delay is produced, thereby prolonging the backflushing/backwashing interval and indirectly reducing system energy consumption.

Features

－Easy to blowback
－Easier to form components
－Longer life time
－Energy Savings


Data & Specifications:
－Length: <1000mm, with welding can be up to 2000mmm
－Outside Diameter(OD): 10mm-90mm
－Media Grade: 0.5-20 μm
Note: Special material, sizes and shape can be customized

Product Material:
－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Applications:
－Petrochemical Industry

• Decarbonization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in chemical industry
• Filtration and recovery of ultrafine crystals and catalysts
• Precise filtration after resin adsorption and impurity removal filtration of heat conducting oil and materials
• Field return water filtration

－Water treatment Industry

• Security filtration of ultrafiltration, RO and EDI systems in water treatment industry, filtration after ozone sterilization, and before canning
• Security filtration before reverse osmosis in seawater desalination field

－Pharmaceutical Industry

• Decarbonization filtration of large infusion, small injection and concentrated oral liquid and security filtration before terminal filtration of dilute liquid
• Impurity removal and filtration in the production process of bulk medicine, decarbonization and fine filtration of materials

－Food Industry

• Clarification and filtration of beverage, fruit juice, liquor, beer, mineral water, soy sauce and vinegar

－In all of these industrial above

• Material interception and filtration in vacuum feeding system (titanium filter element can prevent powder material leakage and environmental pollution)
• Gas purifications of steam, compressed air, catalytic gas
