Description

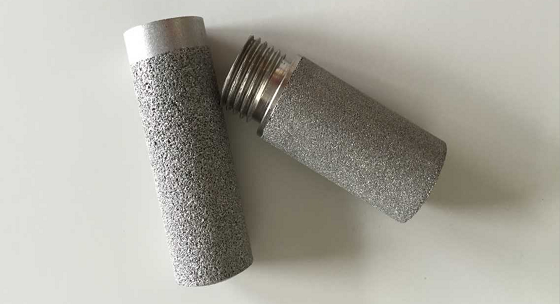

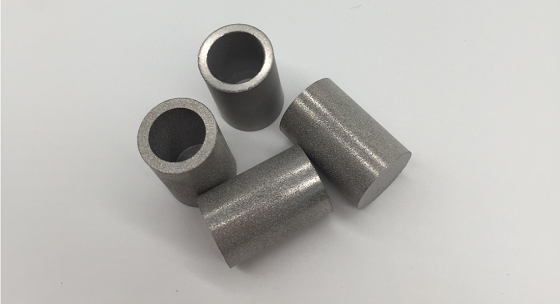

CMI manufactures porous metal cups in a broad range of materials, sizes, micron ratings to meet different applications. Specifications like length, diameter, thickness, alloys and media grades can be adjusted during production process to make the products suitable in various filtration, flow and chemical compatibility in different customers’ processes.

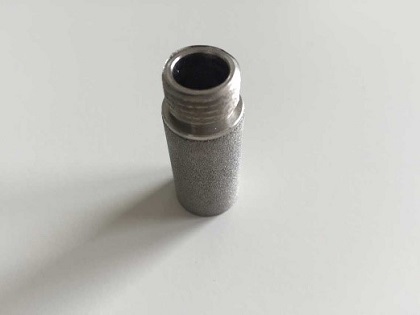

Porous metal cups can also be welded to various fittings in metallic or non-metallic materials and then we provide customer with a complete assembled unit.

Features

－Precise pore size distributions
－Easily cleaned/back-flushed
－Long service life
－High strength and dimensional stability
－Mean Pore size

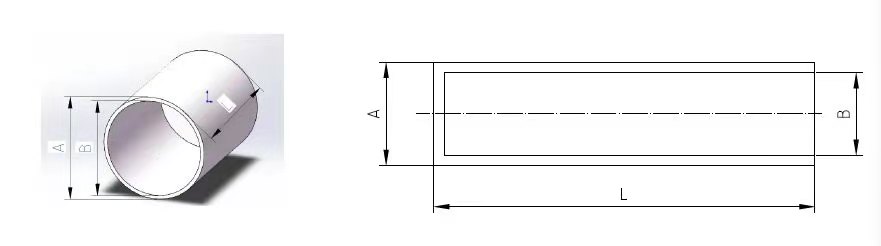

Data & Specifications:

－Standard Length: <1600mm
－Standard Outside Diameter(OD): as small as 4mm; and as big as 450mm
－Standard Media Grade: 0.3-100 μm
－Smallest tolerance: +-0.15mm

Note: Special material, sizes and shape can be customized. Tighter tolerances are also possible. Pls. contact CMI at [email protected] if you have more exacting requirements.


Product Material:

－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Applications:

－Chemical & Petrochemical Industry

• Corrosive liquids & gases
•  Air, nitrogen, carbon dioxide, argon
•  High temperature liquids, gases
• Catalyst retention
• Fluid bed reactors
• Process steam
• Cryogenic fluids
• Solvents, ethylene glycol, polymers

－Pharmaceutical Industry

• Flow control devices for medical equipment
• Liquid drug delivery
• Oxygenation for bioreactors
• Fluid cooling filters

－Food & Beverage Industry

• Carbon removal for decolorization operations
• Bleaching clay filtration
• Process steam filtration

－Instruments

• Chromatography solvents
• HPLC inlet protection
• In-line filtration

－Gas-Liquid contacting/sparging

• Carbonation
• Oxygenation
• Aeration
• Hydrogenation
• Dewatering Oil
