Description

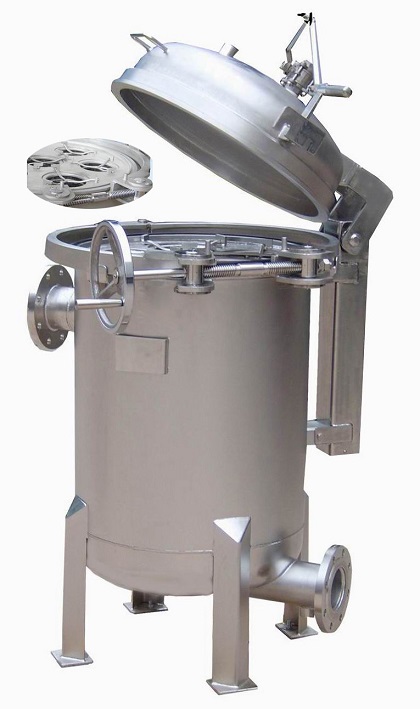

CMI Multi-Bag Filter has a balance system with clamp on the lid to make it easy opening. Its single handed, user-friendly operation makes the filter your ideal choice for high volume applications that require frequent bag changing. Minimal downtime reduces operation cost and makes the batch processes easy to handle. Efficiency is highly improved by a fully-interlocked design that guarantee safety under any conditions. It reduces pass by time, labor cost, which brings good cost down for customer long term operations.

They can be applied in many industrial applications with liquid of low to medium viscosity.
The structure is stable and can be calculated and constructed acc. to ASME Section VIII, Division 1.

Features

－Easy opening with balance system & clamp
－V clamp ensures cost-effective bag filtration
－Single handed, user-friendly operation
－Ideal for high volume applications with often bag changing
－Vertically opening to save installation space
－Fix perfectly with all standard bags
－Can be assembled with all standard filter bags
－Easy cleaning of inner & outer surface

Data & Specifications:

－Size 1, Size 2
－No. of bags: 3/4/6/8/12…up to 24
－Design Pressure: 6bar & 10bar
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: Shot blasted for both inside & outside

VMF Engineering Specifications

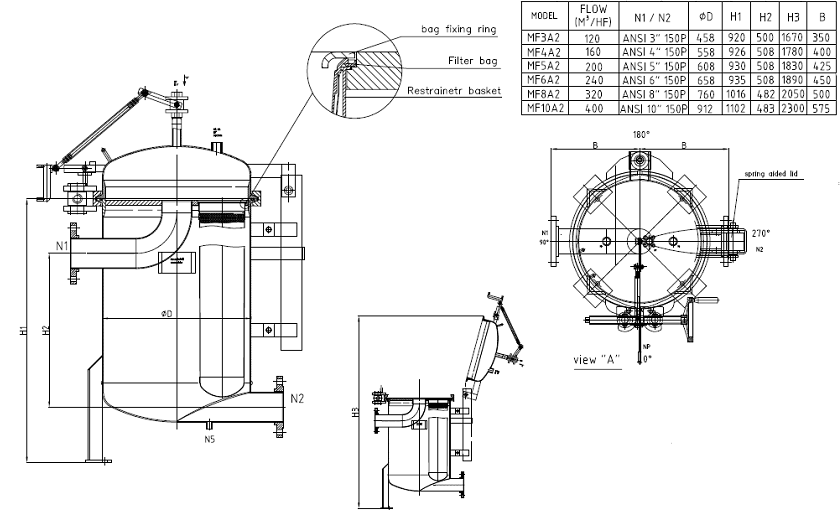

VMF Structure & Sketch
