Description

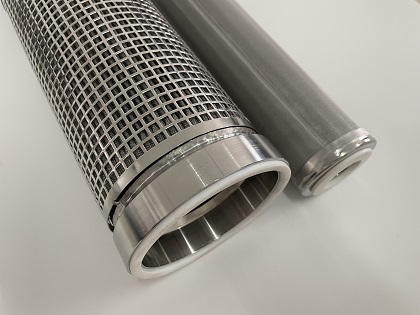

CMI stainless steel sintered metal fiber felt is a kind of felt made by vacuum sintering.

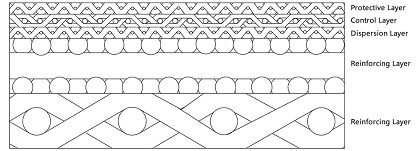

Metal fibers are firstly non-woven laid and laminated, then vacuum sintered by high temperature into filter material.
The most prominent feature is high porosity, even bore diameter and high strength, which makes it not easy to be blocked and damaged. Meanwhile, as the diameter of the metal fiber is very uniform, the pore size distribution is limited to a very narrow range, the metal fiber felt filter provides good gas permeability while ensuring filtration precision.
The structure also increases filtration area by folding and dirt hold capacity.

Features

－High dirt holding capacity
－High porosity and excellent permeability
－Low pressure drop and big flow
－Easily be machined and welded
－Corrosion and high temp. resistant
－Stable pore size due to sintering process
－Easily to be cleaned and long life time

Data & Specifications:

－Shape: Sheet, Plate, Discs, Tubes, length and sizes can be acc. to customer request
－Outside Diameter of cartridges(OD): 20mm-1000mm
－Media Grade of liquid filtration: 3-200 μm
－Media Grade of gas filtration: up to 0.1 μm


Product Material:

－Stainless Steel (SS316L, SS304)

Applications:

－Purification and Filtration of Liquid & Gas
－Separation and recovery of solid particle
－Transpiration cooling under high temperature
－Noise Reduction
－Fluidized Beds
－Chemical fiber filtration
－Chemical Processing
