Description

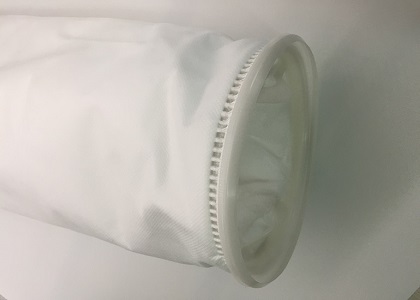

LCR filter bags are manufactured from melt-blown polypropylene which provides the benefits of a clean, chemically resistant and silicone-free material in an economical, self-contained and easy-dispose-of filter bag.
It makes absolute filtration viable in many applications where only standard bags could be used due to cost constraints.
There are two styles available: Series 100 and Series 500, which makes it possible to match the requirements of a wide range of applications, depending on the needs of efficiency and long life.


Features

－Perfect for removal of Gelatinous Materials
－Maximize dirt holding capacity and prolong service life
－Polypropylene outer migration barrier
－All welded multi-pleated construction for series 500
－No bypass with totally welded construction
－Prefilter with large filter surface before final filter layer

Specifications:

－Material: 100 series: 3 layers Polypropylene melt blown
           500 series: 8-12layers Polypropylene melt blown
－Max. Operating Temp.: 90°C (194℉)
－Max. flow rate.: LCR100: Size 1: 8 m3/h，Size 2: 15m3/h
                LCR500: Size 2: 12m3/h
－Types: LCR100: 113/123,114/124,115/125…130,135
         LCR500: 522,525,527,529
－Size selection:
  Size      Dimension
01      7” dia × 16” L
02      7” dia × 32” L
