Description

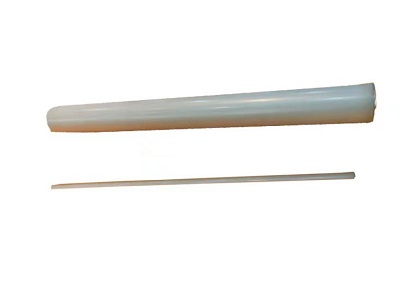

Traditional metal powder sintered filter element has a smooth inner wall and a rough outer wall structure. The filter layer with a rough surface is easier to form a filter cake layer during operation. For sticky solid particles, this phenomenon is more obvious.


For external smooth metal powder sintered filter elements, due to the small binding force between solid particles and the smooth outer surface, the disturbance effect of fluid (solid or liquid) on the surface of the filter element will inhibit or delay the formation of filter cake. In turn, the interval between blowback is extended, easy to blowback, and long life, which can indirectly reduce the energy consumption of the system.

Features
－Easy to blowback
－Not easy to form filter case

－Longer life time
－Energy Savings

Data & Specifications:
－Length: <1000mm, with welding can be up to 2000mmm
－Outside Diameter(OD): 10mm-90mm
－Media Grade: 0.5-100 μm
Note: Special material, sizes and shape can be customized

Product Material:
－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Applications:
－Petrochemical Industry

• Decarbonization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in chemical industry
• Filtration and recovery of ultrafine crystals and catalysts
• Precise filtration after resin adsorption and impurity removal filtration of heat conducting oil and materials
• Field return water filtration

－Water treatment Industry

• Security filtration of ultrafiltration, RO and EDI systems in water treatment industry, filtration after ozone sterilization, and before canning
• Security filtration before reverse osmosis in seawater desalination field

－Pharmaceutical Industry

• Decarbonization filtration of large infusion, small injection and concentrated oral liquid and security filtration before terminal filtration of dilute liquid
• Impurity removal and filtration in the production process of bulk medicine, decarbonization and fine filtration of materials

－Food Industry

• Clarification and filtration of beverage, fruit juice, liquor, beer, mineral water, soy sauce and vinegar

－In all of these industrial above

• Material interception and filtration in vacuum feeding system (titanium filter element can prevent powder material leakage and environmental pollution)
• Gas purifications of steam, compressed air, catalytic gas
