Description

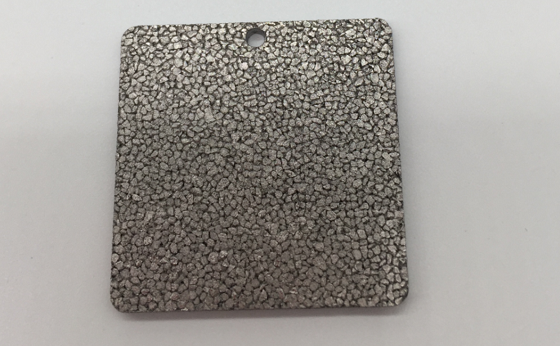

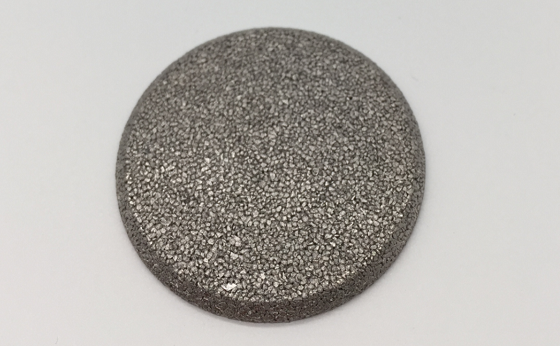

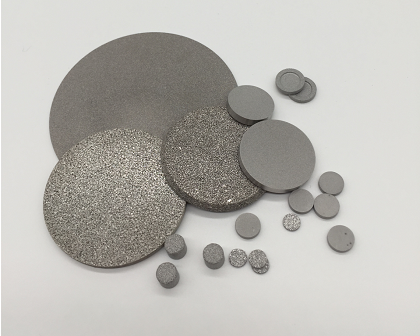

CMI manufactures sintered metal powder sheets and sintered metal powder discs in a wide range of materials and sizes to meet the characteristics and configurations that customers need.
Sintered porous metal discs and sintered porous metal sheets are manufactured from isostatic cool pressing and high temperature vacuum sintering. The micron rating and distribution of the pores can be controlled by the metal powder.

Precision-cast molds and precise pressure control keep product dimensional tolerance even smaller to meet the needs of a wide range of application.

Features


－Precise dimension
－Multiple specifications
－Irregular parts are available
－Better permeability
－Easily cleaned/back-flushed
－Corrosion/abrasion resistant
－High temperature resistance, up to 900℃
－No media migration and second pollution

Data & Specifications:

－Sheet Length (without welding): <420mm
－Outside Diameter(OD) of discs: 5mm-450mm
－Media Grade: 0.3-100 μm
Note: Special material, sizes and shape can be customized

Product Material:

－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Applications:

－Petrochemical Industry

• Decarbonization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in chemical industry
•  Filtration and recovery of ultrafine crystals and catalysts
• Precise filtration after resin adsorption and impurity removal filtration of heat conducting oil and materials
• Field return water filtration

－Water treatment Industry

•  Security filtration of ultrafiltration, RO and EDI systems in water treatment industry, filtration after ozone sterilization, and before canning
• Security filtration before reverse osmosis in seawater desalination field

－Pharmaceutical Industry

• Decarbonization filtration of large infusion, small injection and concentrated oral liquid and security filtration before terminal filtration of dilute liquid
• Impurity removal and filtration in the production process of bulk medicine, decarbonization and fine filtration of materials

－Food Industry

• Clarification and filtration of beverage, fruit juice, liquor, beer, mineral water, soy sauce and vinegar

－In all of these industrial above

•  Material interception and filtration in vacuum feeding system (titanium filter element can prevent powder material leakage and environmental pollution)
• Gas purifications of steam, compressed air, catalytic gas filtration
