Description

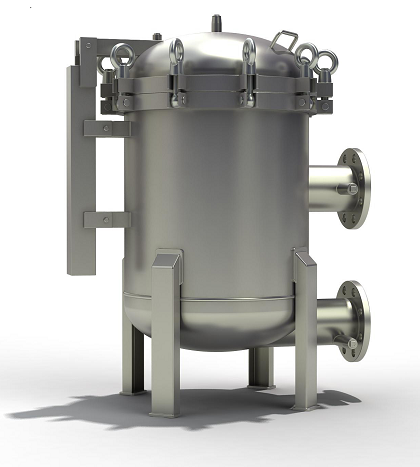

CMI eye bolt opening filter has a balance system with eye bolt & nuts on the lid to make it safety and stable.
It can be side inlet and bottom outlet, providing easy and complete drainage. The convenient tangential bottom outlet reduces housing height, making bag change-out easy and safe. The lid can be easily positioned at any angle by a single worker with only one hand. The bag fixing tool assures no bypass under any conditions.

They can be applied in many industrial applications with liquid of low to medium viscosity.
The structure is stable and can be calculated and constructed acc. to ASME Section VIII, Division 1.


Features

－Eye bolt with balance system makes it stable and safety
－Complete drainage by side inlet and bottom outlet
－Minimal downtime reduces operating cost
－Fully interlocked design for safety under any conditions
－Vertically opening to save installation space
－Fix perfectly with all standard bags
－Can be assembled with all standard filter bags
－Easy cleaning of inner & outer surface

Data & Specifications:

－Size 1, Size 2
－No. of bags: 3/4/6/8/12…up to 24
－Design Pressure: 6bar & 10bar
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: Shot blasted for both inside & outside

EMF Engineering Specifications

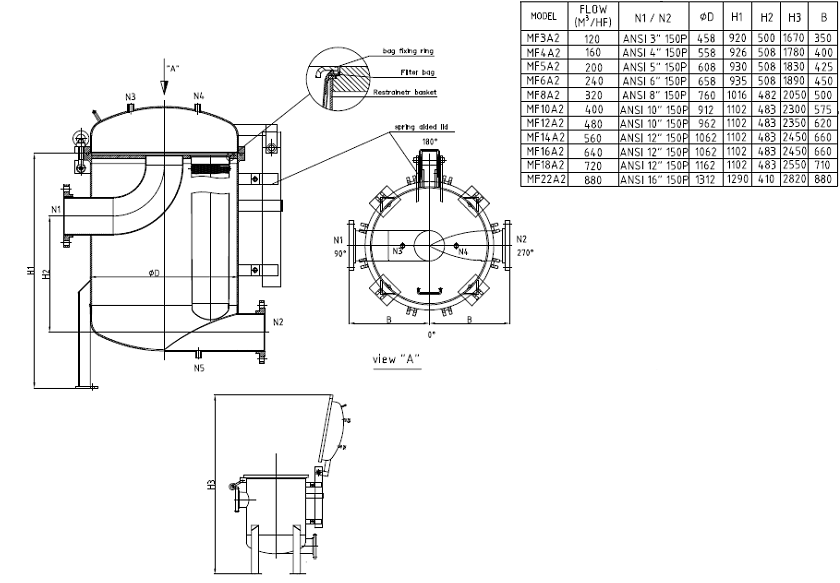

EMF Structure & Sketch
