Description

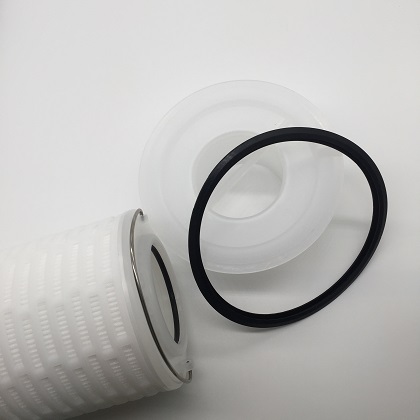

CMI Bag-Type Big Flow Cartridge combines the performance advantages of cartridge filters with the ease use of bag filter systems. It offers unique combination of benefits and unmatched economics. Customers no longer have to choose between cartridge and bag technologies. The pleated media increases the effective filtration area with high flow and long service life.


Features

－High performance filter media
－Pleated configuration with big filtration area
－Large diameter suitable for high contaminant applications
－High mechanical strength
－Easily retrofit into existing size 1 and size 2 housings
－The inside to outside flow ensures the unwanted articles
  are trapped with the element

Specifications:

－Material:
Filter Media: Pleated depth polypropylene (PP)
Outside Support: Polypropylene (PP)
End Caps: Polypropylene (PP)
Adjustable flange: Polypropylene (PP)
O-ring Seal: EPDM, NBR
－Micron Rating: 0.5µm --120 µm
－Outside Diameter: 6 inches (152mm)
－Length:16inch(405mm) for size 1 bag; 31inch(785mm) for size 2 bag
－Max Operating Temperature: 60℃
－Recommended Change out DP: 2.4bar @ 20℃
