Description

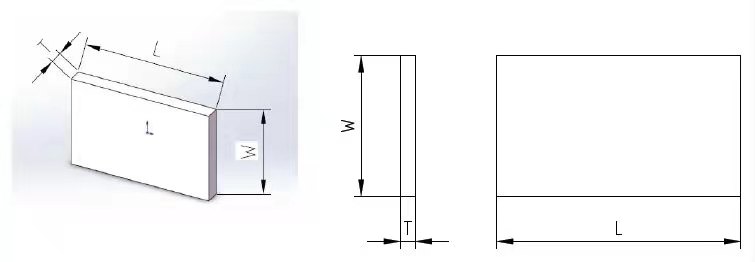

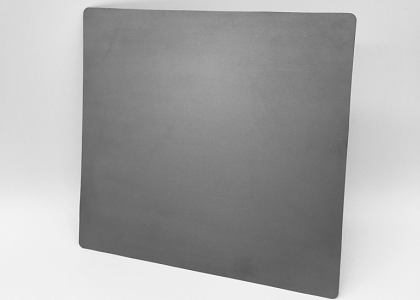

CMI porous metal sheet can be produced to wide applications and specifications. Length, width, thickness, alloys and media grades can be adjusted to meet different filtration rate, flow rate, chemical compatibility.

Features

－Precise pore size distributions
－Easily cleaned/back-flushed
－Long service life
－High strength and dimensional stability
－Mean Pore size

Data & Specifications:

－Standard OD: <420mm
－Standard Thickness: 0.1-3mm
－Standard Media Grade: 0.3-100 μm

Note: Special material, sizes and shape can be customized. Tighter tolerances are also possible. Pls. contact CMI at [email protected] if you have more exacting requirements.


Product Material:

－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Applications:

－Chemical & Petrochemical Industry

• Corrosive liquids & gases
• Air, nitrogen, carbon dioxide, argon
• High temperature liquids, gases
• Catalyst retention
• Fluid bed reactors
• Process steam
• Cryogenic fluids
• Solvents, ethylene glycol, polymers

－Pharmaceutical Industry

• Flow control devices for medical equipment
• Liquid drug delivery
• Oxygenation for bioreactors
• Fluid cooling filters

－Food & Beverage Industry

• Carbon removal for decolorization operations
• Bleaching clay filtration
• Process steam filtration

－Instruments

• Chromatography solvents
• HPLC inlet protection
• In-line filtration

－Gas-Liquid contacting/sparging

• Carbonation
• Oxygenation
• Aeration
• Hydrogenation
• Dewatering Oil
