Description



CMI Spherical spargers are composed by three parts: sintered porous spherical part in titanium, solid titanium plate and thread connection.
Sintered porous spherical part is the main part which is sintered by pure titanium powder material.
The micron rating and distribution of the pores can be controlled by the metal powder.


Features



-Precise pore size distributions
-Small bubble created
-Easily cleaned/back-flushed
-Corrosion/abrasion resistant
-High temperature resistance
-High pressure resistance
-No media migration and second pollution

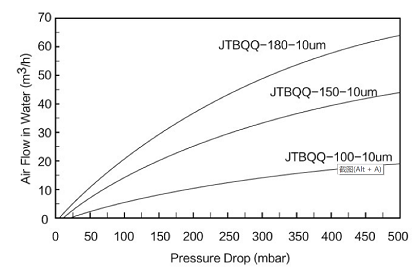

Data & Specifications:

No.      Code         Gas Outlet(mm)     Height(mm)    Connection    Aeration Area(m2)    O2 utilization ratio
1         JTBQQ-100     Ф100                        57                   R 1/2”                0.5                            32.22-45.33%
2         JTBQQ-150     Ф150                        76                   R 1/2”                0.8                            32.22-45.33%
3         JTBQQ-180     Ф180                        82                   R 1/2”                1                               32.22-45.33%



Note: Special material, sizes and shape can be customized. Pls. contact CMI at [email protected] if you have more exacting requirements.



Product Material:


-Stainless Steel (SS316L, 304L,310S,904L)
-Titanium
-Hastelloy (C-22,C-276,XB-2)
-Inconel (600, 625,800)
-Monel (400 and so on)
-Nikel


Applications:


-Conventional Sintered Metal Spargers

  • Pure water and mineral water ozone sterilization aeration
  • Industrial waste water aeration
  • Aeration of domestic sewage treatment aeration tank
  • Aeration in high temptation environment

-Special Sintered Metal Spargers

  • Oil produced water degreasing aeration
  •  Industrial waste water degreasing aeration
  • Aeration of high viscosity fluid
  • Aeration in high temptation environment
  • Aeration in easy scaling application
