Description

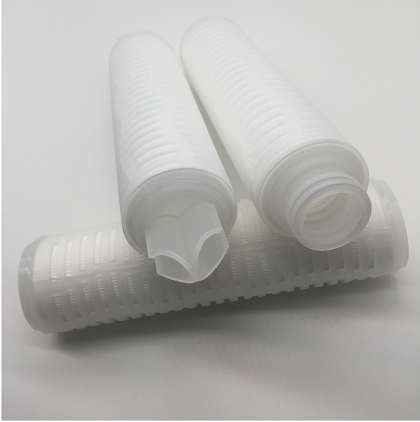

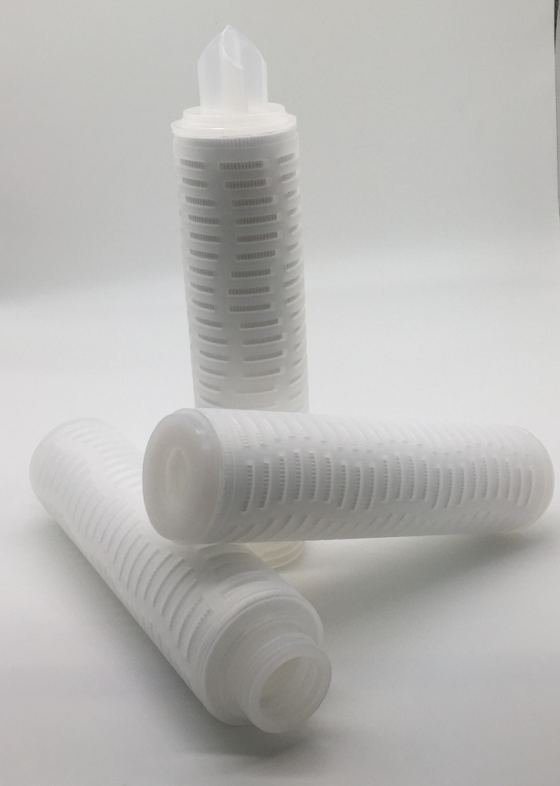

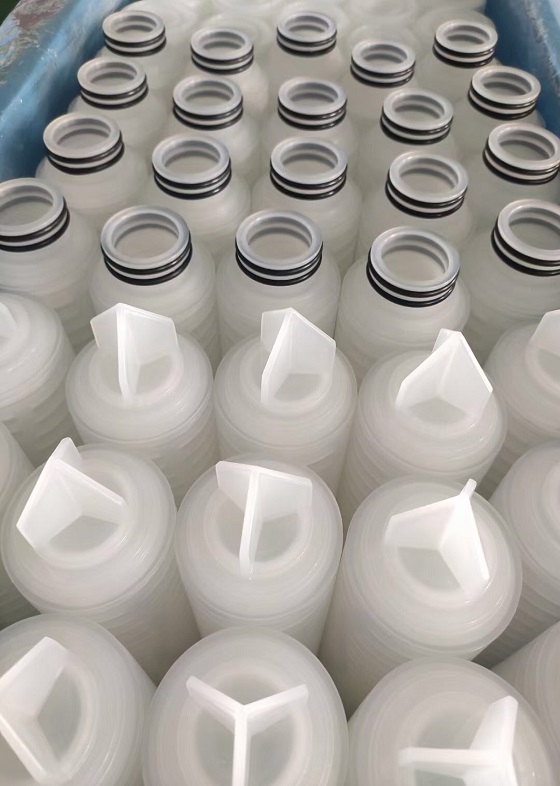

Polypropylene pleated filter cartridge is constructed of micro polypropylene media and nonwoven or silk net support. Adaptors are thermally welded to cartridge without using any glue, so there is no second pollution caused by it.
It delivers high efficiency and consistent filtration for wide range of critical applications. Removal of particles from 0.1 to 50 micron, available in both nominal and absolute ratings.


Features

－Excellent chemical compatibility
－Pleated structure increases filtration area
－Low pressure drop and long service life
－Full range of removal ratings
－Graded pore density for high dirt holding capacity

Specifications:

－Material:
Media: PP, PES, Nylon, PTFE
Seal: Silicone, EPDM, NBR, Viton, Teflon
－Micron ratings: 0.1,0.22,0.45,1,3,5,10,20,50 micron
－Length: 10inch, 20inch, 40inch, 60inch
－Max DP: 4 bar
－Max. Operating Temperature: 80℃(PP);
－Sterilization Temperature: 5 times, 20min cycles at 120℃(PP)
