Description

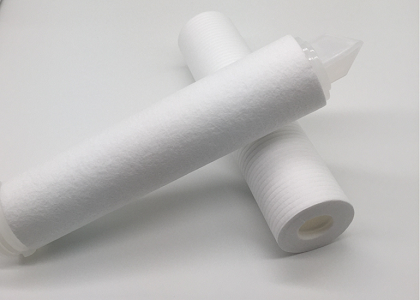

Our high-performance polypropylene melt blown filters are manufactured under computer-controlled process produces an extraordinarily consistent products quality.
The cartridge comes in three progressive depth structures-the inner fibers are extremely fine and compact to capture fine particulates. The fibers in the middle and outer areas are larger in diameter and less density, more porosity, which brings an excellent property capacity. Besides that, this cartridge also gives you higher surface area and non-fiber releasing.


Features
－Three layers structure depth filtration
－100% pure polypropylene material
－Good chemical compatibility by different filtration media
－Full range of removal ratings
－Different sizes (length and diameter) are available
－High dirt holding capacity
－FDA compliant material
－Without use of any chemicals or glues

Specifications
－Material:
Filter Media: Polypropylene
Inner core: Polypropylene
End cap: Polypropylene
Gasket: NBR, EPDM, Viton, Silicon
－Micron ratings:  1,5,10,20,25,50,75,100,150μm
－Max. Operating Temperature: 65℃
－Max. Operating Pressure:2.0 Bar@21℃
－OD: 60mm,62mm,114mm
－ID: 28m,30mm,32mm,34mm,36mm,38mm,110mm
－Connection: Double open end or various options of single open-end adapters are available
－Length: 5″(127mm), 10″(254mm), 20″(508mm), 30″(762mm), 40″(1016mm), 50″(1270mm), 60″(1524mm)
－Optional Choice: Different types of surfaces to be chosen.

Ordering Table:
