Description

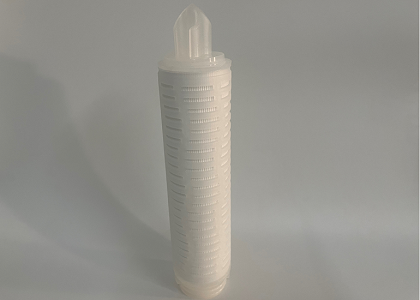

CMI hydrophilic PTFE pleated filter cartridge is constructed of hydrophobic pleated polytetrafluoroethylene membrane. It has excellent chemical compatibility and corrosion resistance, and can be widely used for filtration of aggressive and oxidative liquid and gas, air filtration, and so on.


Features

－Absolute removal ratings >99.9%
－Excellent chemical resistance
－Low pressure drop and long service life
－Pleated construction provides high flow rates, low initial
  Differential pressure and good dirt hold capacity
－Material acc. to FDA compliance title 21
－Cartridge can be autoclaved for at least 5 times half-hour cycles @ 121℃(250℉)
－Various adaptors choices
－100% integrity test

Specifications

－Material:
   Media: hydrophobic pleated polytetrafluoroethylene membrane
   Inner core, cage, caps, support layer: polypropylene(standard)
   O-ring: Buna N, EPDM, Viton, Silicone, FEP/Silicone, FEP/Viton
－Micron ratings: 0.1,0.22,0.45,1μm
－Length: 10inch (254mm), 20inch(508mm), 30inch(762mm), 40inch(1016mm)
－Outside Diameter: 2.36inch(60mm), 2.48inch (63mm), 2.56inch(65mm),2.68inch(68mm)
－Max. differential pressure:
   1.37 bar@93℃(19.9psid@200℉)
   5.49 bar@21℃(79.7psid@70℉)
－Recommended change pressure drop: 2.1 bar@21℃(30.5psid@70℉)
－Max. Operating Temperature:93℃(200℉)

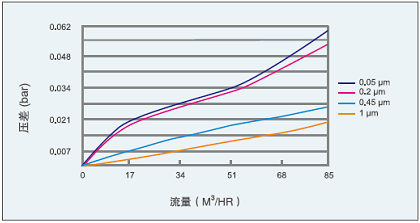

Air Flow Rate of 10inch, system pressure<10 psig, @18℃(65℉)

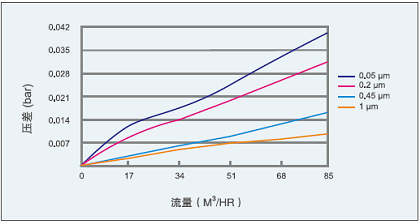

Air Flow Rate of 10inch, system pressure=30 psig, @18℃(65℉)

Ordering Table:
