Description

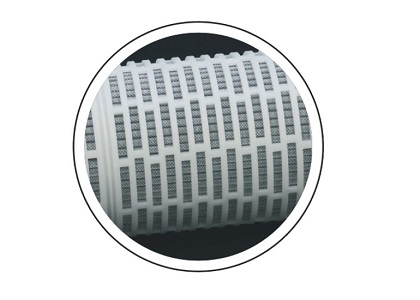

CMI CHFC Series filter cartridge is a kind of high flow filter which are made from carbon impregnated cellulose. The filter has a big diameter of 160mm(6.3inch) or 165mm(6.5inch), with PP inner core, single open ended. Flow is from outside to inside to make sure all dirt particles can be intercepted on the outside side of the filter.

CHFC is a pleated cartridge with big filtration area and good dirt hold capacity. These factors provide customers with consistent performance and effluent quality.

100% carbon impregnated cellulose material makes the filter cartridge excellent Benzene absorption efficiency.


Features

-High Filtration Area
-High flow capacity
-High contaminant loading capacity
-All contaminants can be effectively removed
-Great saving of change out time
-Outside to inside flow pattern-all dirt will contain outside the cartridge
-Polypropylene material brings good chemical compatibility
-Large diameter reduces filter housing space
-Easy cartridge change-out without use of special tools
-Filter media is 100% carbon impregnated cellulose material



Specifications

-Material:
   Filter Media: Carbon impregnated cellulose: CIC32, CIC40
   Outside Support: Polypropylene (PP)
   End Caps: Glass fiber reinforced polypropylene
   Inner core: Polypropylene (PP)
   O-ring Seal: EPDM, NBR, Silicon, Viton
-Micron ratings: 0.5,1,5,10,20,40,75,100micron
-Outside Diameter: 152mm(6inch)
-Length: 20inch, 30inch, 40inch, 50inch, 60inch
-Max. Operating temperature: 80℃
-Max. Operating DP:4.0 Bar@20℃; 2.4bar @ 80℃


Note: Other types of high flow filters are also available. Pls. contact CMI at [email protected] if you have more exacting requirements.
