Description

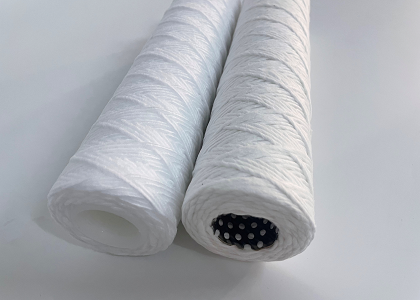

Absorbent Cotton string wound cartridge is made from absorbent cotton yarn and comes out with special patterns by certain technology.
It is a kind of depth filtration with the micron rating decided by the wound pattern and wound density of filament yarn. Its pore is bigger outside and smaller inside. It is mostly used in low viscosity and low impurity liquid, and also suspended particular materials. With different types of filament media, the cartridges could meet different applications like: water treatment, food & beverage, organic solvent, plating solution in electronics industry, petrochemical industry, hydraulic liquid, lubricant and so on.



Features
-Honeycomb structure makes it higher efficiency
-Both spirals welding and straight welding are available
-Good chemical compatibility by different filtration media
-Full range of removal ratings
-Different sizes (length and diameter) are available
-Big flow rate and high dirt holding capacity
-Good applied for prefiltration before RO system



Specifications
-Material:
   Filter Media: Absorbent Cotton
   Inner Core: Polypropylene /SS304/SS316L
   Gasket: NBR, EPDM, Viton, Silicon
-Micron ratings:  1, 3, 5, 10, 20, 25, 50,75,100,150μm
-Max. Operating Pressure:2.0 Bar@25 ℃
-Max. Operating Temperature:
    Absorbent Cotton media with PP core ≤ 70 ℃
    Absorbent Cotton media with SS core ≤ 120 ℃
-Length: 5″(127mm), 10″(254mm), 20″(508mm), 30″(762mm), 40″(1016mm), 50″(1270mm), 60″(1524mm), 70″(1778mm)
-OD: 60mm,62mm,68mm,114mm
-ID:28mm,30mm

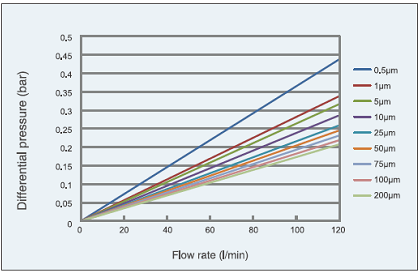

Flow Rate of 10inch, for fluids with a dynamic viscosity of 1m Pa.s @20℃(68℉)



Ordering Table:

CODE Media Material Inner Core  Length OD Micron Rating O-ring Material End Connections
CSW AC- Absorbent Cotton S-SS304
SS-SS316L
P-Polypropylene
5-5inch
10-10inch
20-20inch
40-40inch
60-60inch
60-60mm
62-62mm
68-68mm
114-114mm

1-1μm
3-3μm
5-5μm
10-10μm

…..


E-EPDM
V-Viton
B-NBR
S-Silicon
D-Double Open End
2-222 flat, single Open End
2F-222 Fin, Single Open End
6-226 flat, single Open End
6F-226 Fin, Single Open End
