Description

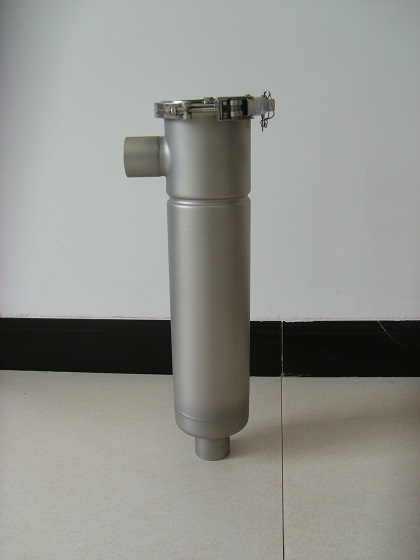

CMI Economic Bag Filter Vessels series is designed for a general-purpose use for your filtration needs.
Simple V clamp cover design makes it easy to use. It is available for flow rate up to 40 m3/h(water).

Features


－The most cost effective vessels available
－V clamp design for quick closure
－SS304/316 construction
－Unique viton profile gasket for perfect bag sealing
－Fix perfectly with all standard bags
－Can be assembled with all standard filter bags
－The inner and outer surfaces of the shell are shot blasted for easy cleaning

Data & Specifications:

－Size 1, Size 2, Size 3 and Size 4
－Design Pressure: 6bar
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: Shot blasted for both inside & outside

EF Engineering Specifications

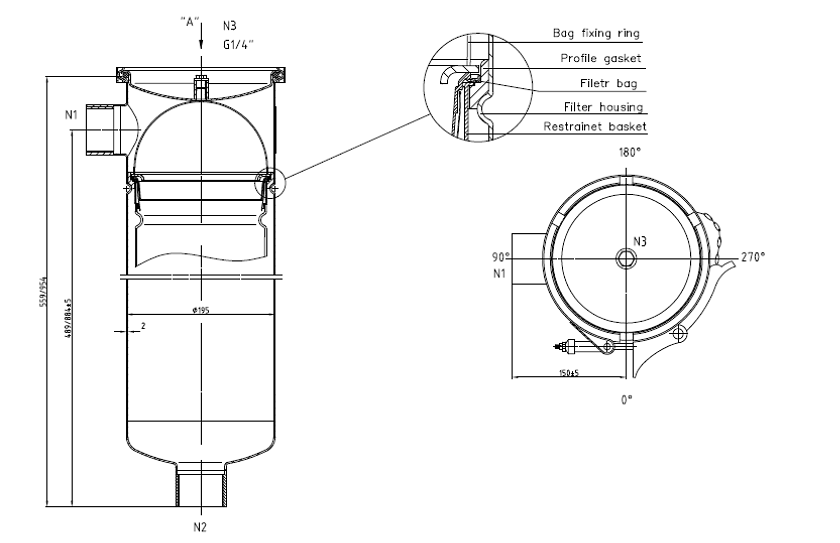

EF Structure & Sketch
