Description

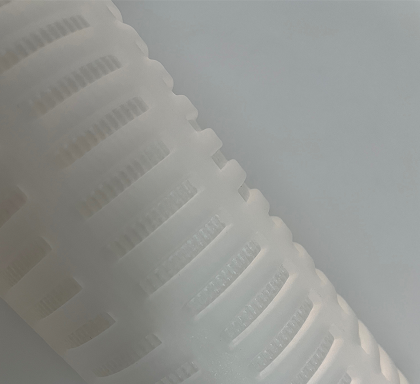

CMI PES pleated filter cartridge is constructed of hydrophilic pleated polyethersulfone membrane. The asymmetric structure features a large surface area that allows for superior flow rates and high particle removal efficiency.

It delivers high efficiency and consistent filtration for wide range of critical applications. Removal of particles from 0.22 to 1 micron, available in both nominal and absolute ratings.

Features

－Asymmetric, hydrophilic pleated polythersulfone membrane
－No surfactants or wetting agents
－Low pressure drop and long service life
－Pleated construction provides high flow rates, low initial
  Differential pressure and good dirt hold capacity
－Material acc. to FDA compliance title 21
－Cartridge can be autoclaved for at least 5 times half-hour cycles @ 121℃(250℉)
－Various adaptors choices
－100% integrity test

Specifications

－Material:
   Media: Pleated asymmetric, hydrophilic polyehersulfone membrane
   Inner core, cage, caps, support layer: polypropylene(standard), Stainless Steel
   O-ring: Buna N, EPDM, Viton, Silicone, FEP/Silicone, FEP/Viton
－Micron ratings: 0.04,0.1,0.2,0.45,0.65,1.2μm
－Length: 10inch (254mm), 20inch(508mm), 30inch(762mm), 40inch(1016mm)
－Outside Diameter: 2.36inch(60mm), 2.48inch (63mm), 2.56inch(65mm),2.68inch(68mm)
－Max. differential pressure:
   1.67 bar@80℃(24.2psid@176℉)
   5.39 bar@21℃(78.2psid@70℉)
－Recommended change pressure drop: 2.1 bar@21℃(30.5psid@70℉)
－Max. Operating Temperature:93℃

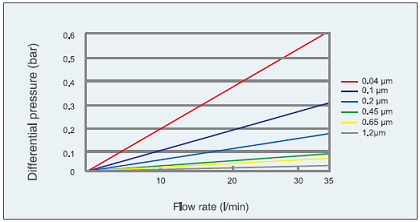

Flow Rate of 10inch, for fluids with a dynamic viscosity of 1m Pa.s @20℃(68℉)

Ordering Table:
