Description

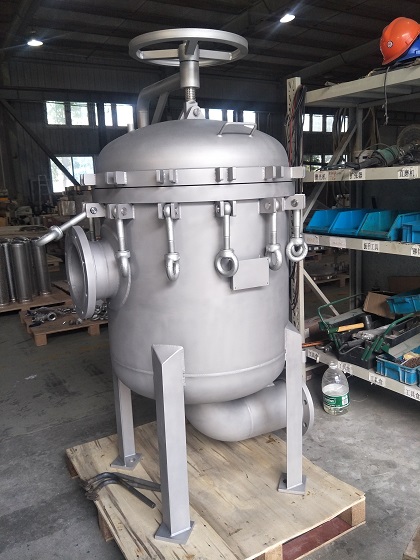

CMI davit arm opening filter has davit arm with eye bolt & nuts on the lid to make it safety and stable.
It can be side inlet and bottom outlet, providing easy and complete drainage. The convenient tangential bottom outlet reduces housing height, making bag change-out easy and safe. The lid is opened horizontally by side.

They can be applied in many industrial applications with liquid of low to medium viscosity.
The structure is stable and can be calculated and constructed acc. to ASME Section VIII, Division 1.

Features

－Davit Arm with eye bots makes it stable and safety
－Complete drainage by side inlet and bottom outlet
－Fully interlocked design for safety under any conditions
－Fix perfectly with all standard bags
－Can be assembled with all standard filter bags
－Easy cleaning of inner & outer surface

Data & Specifications:

－Size 1, Size 2
－No. of bags: 3/4/6/8/12…up to 24
－Design Pressure: 6bar & 10bar
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: Shot blasted for both inside & outside

DMF Engineering Specifications

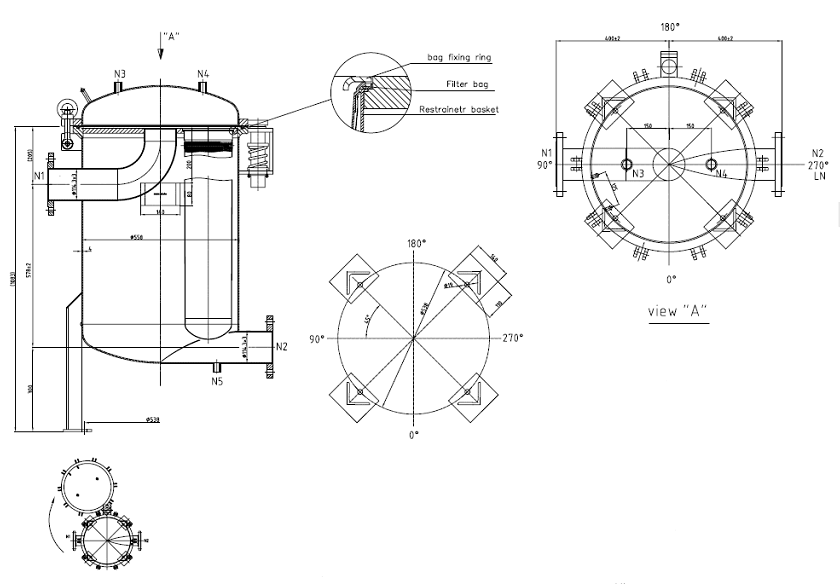

DMF Structure & Sketch
