Description

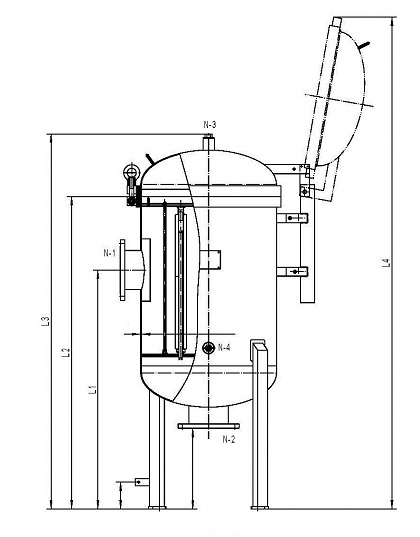

CMI manufactures multi-cartridge filters up to 280 rounds.

The cartridge number and length can be acc. to customer’s request. Different types of lid opening are available for choices: by quick opening devices or by eye bolt or by davit arm.

They can be applied in many industrial applications with liquid of low to medium viscosity.
The structure is stable and can be calculated and constructed acc. to ASME Section VIII, Division 1.

Features

－Various types are available for different applications
－Different lid opening are available
－Both vertical and horizontal types can be manufactured
－Fix perfectly with all standard filter cartridges
－Can be assembled with all standard filter cartridges
－Easy cleaning of inner & outer surface

Data & Specifications:

－Length: 10inch to 40inch
－Fit with DOE, SOE or 222 cartridges
－Connection: ANSI, DIN, BSP, JIS10K and so on
－Design Pressure: 6bar & 10bar, up to 30bars
－Design Temp: 120 deg C
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE, Viton+PTFE
－Surface Treatment: E-polishing or Shot blasted for both inside & outside
