Description

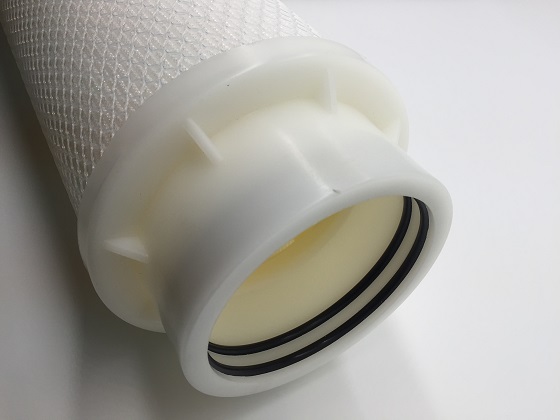

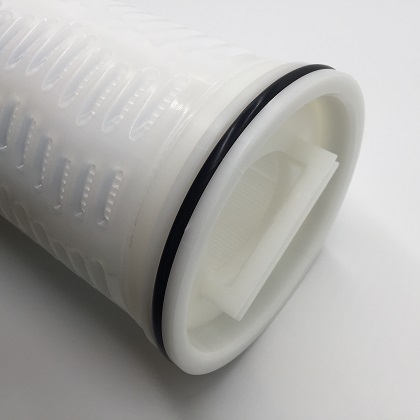

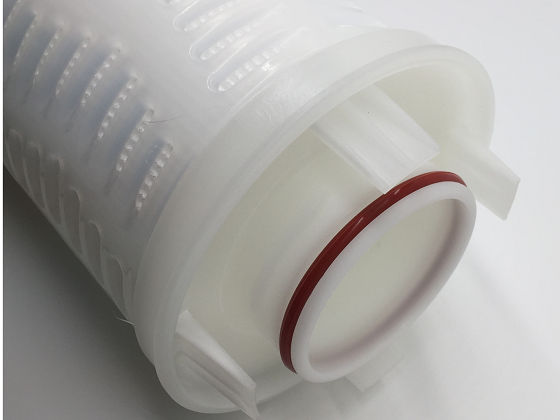

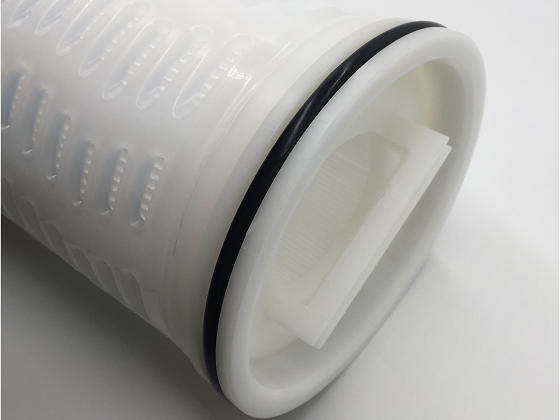

High Flow Filter Cartridge is a filter with large diameter, coreless single open end pleated cartridge. Big diameter with big filtration area reduces up to 50% of filter system and save up to 60% of change out time compared with conventional cartridge system. It gives customer lower investment cost, disposal cost, as well as long service life.
The structure also provides you with a better sealing to ensure a perfect filtration.

There are several types of high flow cartridges: the most common used type is flow from inside to outside; while other three types are from outside to inside.


Features

－High flow up to 84m3/h per cartridge for water
－Gradient pore structure
－Max. up to 50% reduction of filter vessel
－Filtration area is up to 9.45m2
－All contaminants can be effectively removed
－Other types are available upon request

Specifications:

－Material:
    Filter Media: Pleated PP, Pleated glass fiber; melt blown
    Outside Support: Polypropylene (PP)
    End Caps: Glass fiber reinforced polypropylene
    O-ring Seal: EPDM, NBR
－Micron ratings: 1,4.5,10,25,40,75,100micron
－Outside Diameter: 6 inches (152mm)
－Length: 20inch, 40inch, 60inch
－Max flow rate: 20inch: 28m3/h; 40inch: 56m3/h; 60inch: 84m3/h
－Recommended Change out DP: 2.4bar @ 20℃
