Description

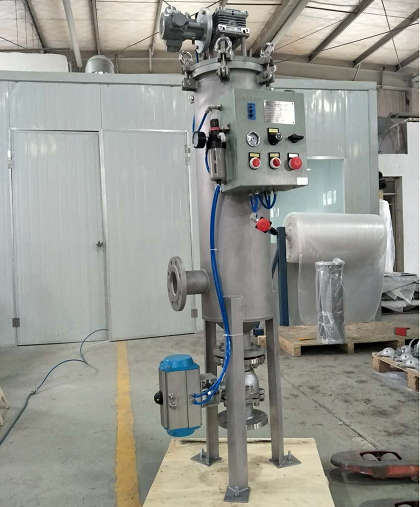

CMI round scraping filter is using a dual pneumatically driven activator to move the special PTFE erasing knife to perform the cleaning operation around the wedge wire element.
It is designed to handle the filtration of 25micron or larger in various industries with high particle content, viscous and sticky liquid, which other system simply cannot handle.



Features

－Automatic cleaning, automatic discharge
－No consumable spare parts like filter bags
－Pneumatically driven or electrically driven by customer choice
－Filter element is cleanable
－Online filtration and cleaning
－Low product loss, can be controlled under 1%

Data & Specifications:

－Controls: cleaning erasing knife actuator adjustable stroke speed
－Purge valve actuator: manual control
－Service requirements: air supply
  Minimum: UCCF-3”-80Psig (550kPa)
  Maximum: 120 PSIG (825kPa)
  Intermittent flow: minimum 1 CFM (28l/min)
－N1/N2 choice: Flange (DIN, ANSI, JIS), Socket( BSP, NPT)
－Material: SS304 & SS316L
－Gasket: Buna, EPDM, Viton, PTFE
－Basket choice: 25um - 400um

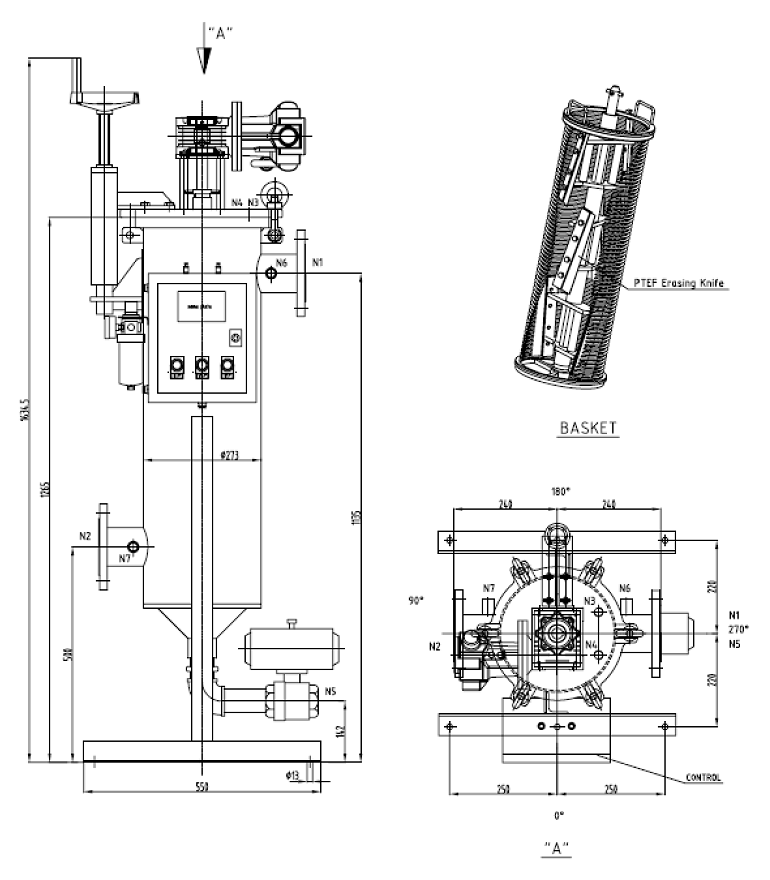

DMF Structure & Sketch
