Description

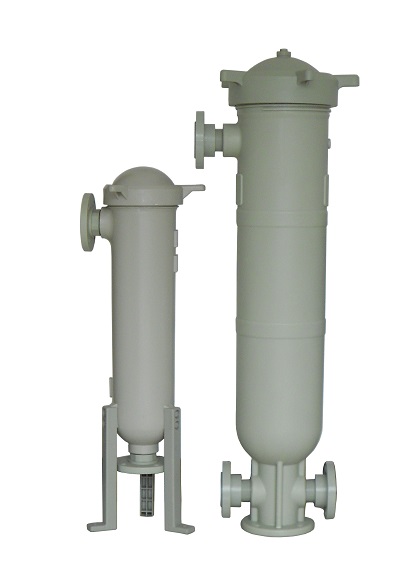

Our Polypropylene vessel is a light weight, one piece molded strong and economical vessel with UV inhibitor for all weather durability able to solve your filtration requirement for corrosive chemicals.The simple design of threaded lid allows you to operate for bag changing with any help of tools.
Features
－Light weight for easy handling
－Good corrosive resistance
－PP construction
－Fix perfectly with bags size 2 and size 5
－Easy cleaning of inner & outer surface
Data & Specifications:
－Size 1, Size 5
－Design Pressure: 6bar at 30 deg C
－Design Temp: 80 deg C
－Material: PP
PF Engineering Specifications
|
Type code |
PF1P2-6-020A |
PF1P5-6-020A |
|
Size |
Size 02 |
Size 05 |
|
Max. flow rate |
40m3/h |
18m3/h |
|
Filter area |
0.5m2 |
0.2 m2 |
|
Standard Inlet/outlet |
2”NPT female & ANSI 2” flange |
2”NPT female & ANSI 2” flange |
|
Operating Data |
Max. 6.0 bar/80 ℃ |
Max. 6.0 bar/80 ℃ |
|
Housing Weight |
14kg(approx.) |
7.3kg(approx.) |
|
Installation Height |
200cm (approx.) |
98cm (approx.) |
|
Installation Space |
approx. 60 cm x 60 cm |
approx. 50 cm x 50 cm |
|
Mode of installation |
Self-supporting |
Self-supporting |
|
Packing: corrugated box |
128 cm x 37 cm x 37 cm |
78 cm x 28 cm x 28 cm |
PF Ordering Information
|
PF1 |
P5- |
6- |
020A |
|
1 - Single Bag Vessel
2 - Double Bag Vessel |
2 - #2 5 - #5 |
6 Bar |
N – NPT Socket 2" - 020 |

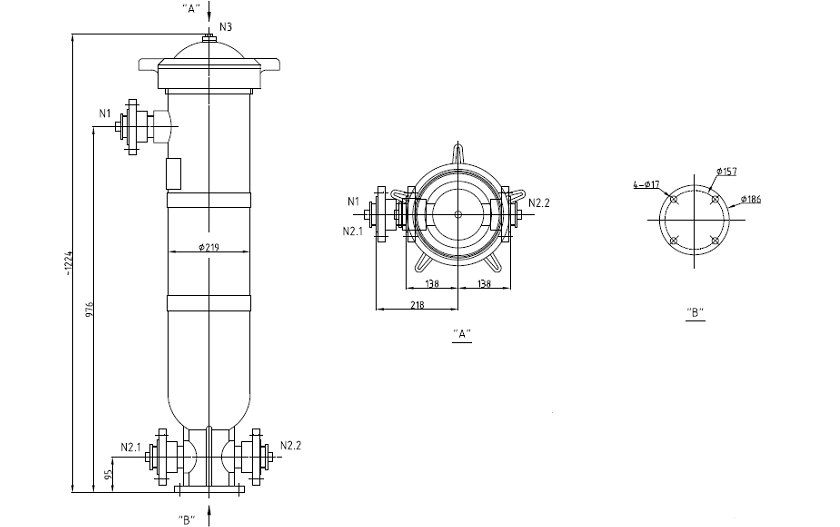

PF Structure & Sketch Size 2

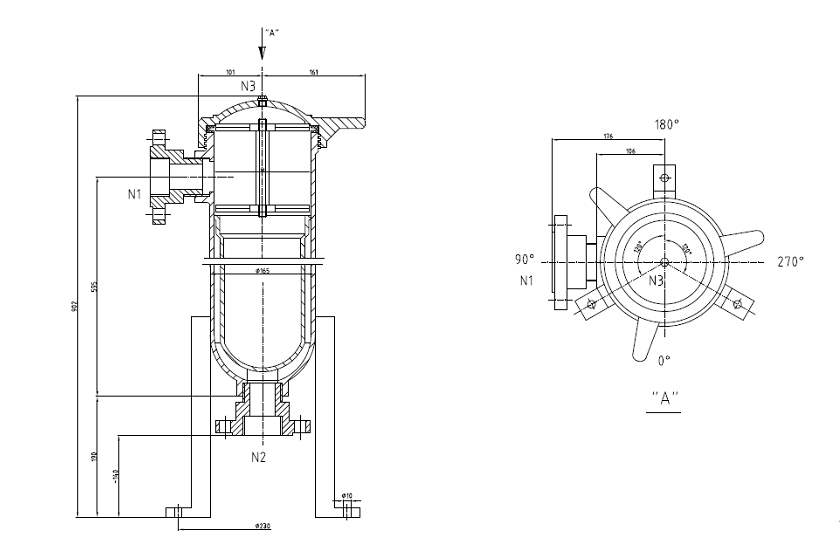

PF Structure & Sketch Size 5
