Description

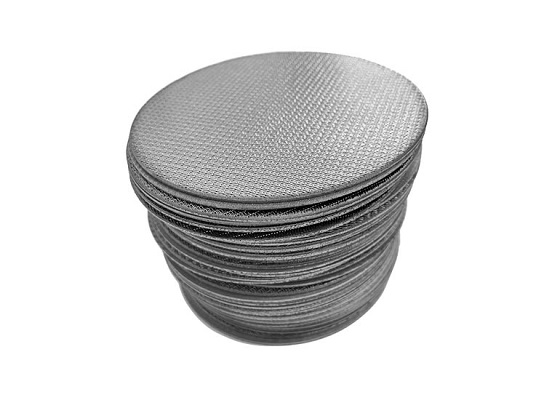

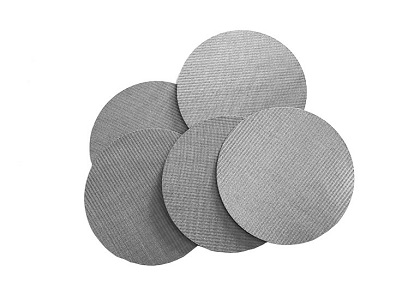

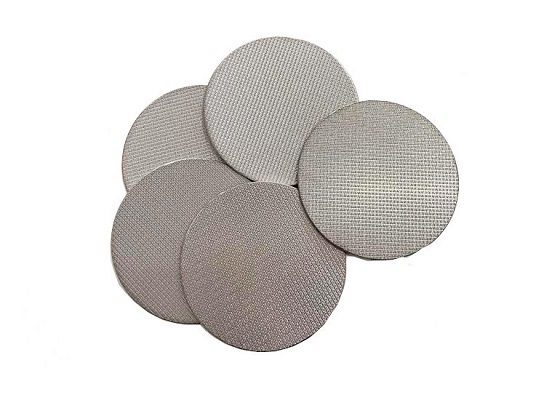

CMI manufactures sintered metal mesh and fiber discs in a wide range of materials and sizes to meet the characteristics and configurations that customers need. Several layers of meshes or fiber are sintered and formed into disc or sheet shapes.

The micron rating and distribution of the pores can be controlled by the meshes or fivers. This structure brings bigger filtration area and flow rate, which can be widely used in different applications.

Features


－Precise dimension
－Multiple specifications
－Irregular parts are available
－Better permeability
－Easily cleaned/back-flushed
－Corrosion/abrasion resistant
－High temperature resistance, up to 900℃
－No media migration and second pollution

Data & Specifications:

－Sheet Length (without welding): <420mm
－Outside Diameter(OD) of discs: 5mm-450mm
－Media Grade: 0.3-100 μm
Note: Special material, sizes and shape can be customized

Product Material:

－Stainless Steel (SS316L, 304L,310S,904L)
－Titanium
－Hastelloy (C-22,C-276,XB-2)
－Inconel (600, 625,800)
－Monel (400 and so on)
－Nikel

Applications:

－Petrochemical Industry

• Decarbonization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in chemical industry
•  Filtration and recovery of ultrafine crystals and catalysts
• Precise filtration after resin adsorption and impurity removal filtration of heat conducting oil and materials
• Field return water filtration

－Water treatment Industry

•  Security filtration of ultrafiltration, RO and EDI systems in water treatment industry, filtration after ozone sterilization, and before canning
• Security filtration before reverse osmosis in seawater desalination field

－Pharmaceutical Industry

• Decarbonization filtration of large infusion, small injection and concentrated oral liquid and security filtration before terminal filtration of dilute liquid
• Impurity removal and filtration in the production process of bulk medicine, decarbonization and fine filtration of materials

－Food Industry

• Clarification and filtration of beverage, fruit juice, liquor, beer, mineral water, soy sauce and vinegar

－In all of these industrial above

•  Material interception and filtration in vacuum feeding system (titanium filter element can prevent powder material leakage and environmental pollution)
• Gas purifications of steam, compressed air, catalytic gas filtration
